Beschreibung

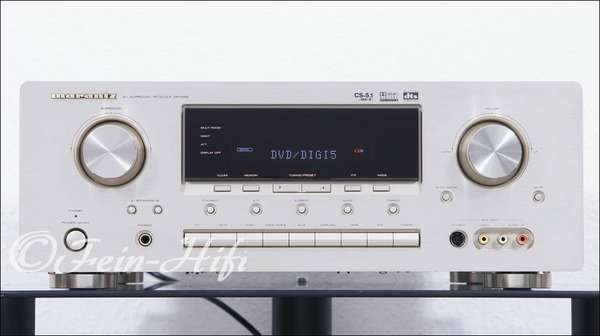

6.1 Heimkino AV Receiver mit Dolby Digital , DTS , Pro-Logic II und DSP. mit echtem Digital Kino Sound und vielen Anschlüssmöglichkeiten (auch Digitaleingänge optisch und koaxial für alle möglichen Hifi und Videogeräte. Mit Subwooferausgang
Technischer Zustand
einwandfrei, voll funktionstüchtig
Optischer Zustand
guter Zustand, lediglich geringe Gebrauchsspuren
Zubehör

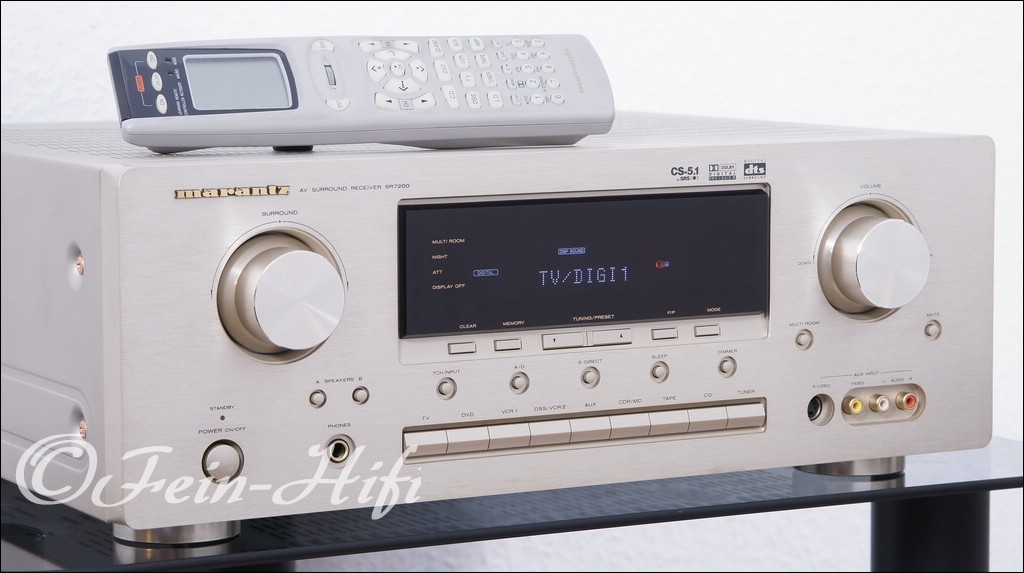

mit Fernbedienung und Bedienungsanleitung
Technische Daten
- DTS 5.1 / 6.1 Compatible
- Dolby Digital DD
- Dolby Pro Logic DPL / DPL II
- Circle Surround 5.1
- Virtual Surround
- Multi Channel Stereo
- Surround Modes Movie, Hall, Matrix & Studium
- Auto Surround Mode Detection
- HDCD Decoder
- SOUND ENHANCEMENTS
- Current Feedback Technology
- Discrete Amplification (All)
- Power transformer EI
- Linear Drive Power Supply
- Chassis Metal
- 192/24-bit D/A Conversion Front Channels
- A/D Converter 96/24
- Digital Signal Processing 24-bit
- Digital Signal Processor CS49326
- Adaptive Double Diff. Control
- Video Off
- High Grade Video Components
- Source Direct
- System Block Shielding
- High Grade Audio Components
- Customized Components
- Intel. silent cooling system
- Chassis Stabilisation system
- GYRO Touch Tuning
- Random Tuner Presets 30
- RDS PS, PTY, RT
- Speaker Distance Correction
- On Screen Display Main / Multi Room
- Auto TV Switching (On/Off)
- Software Upgradable (RS232)

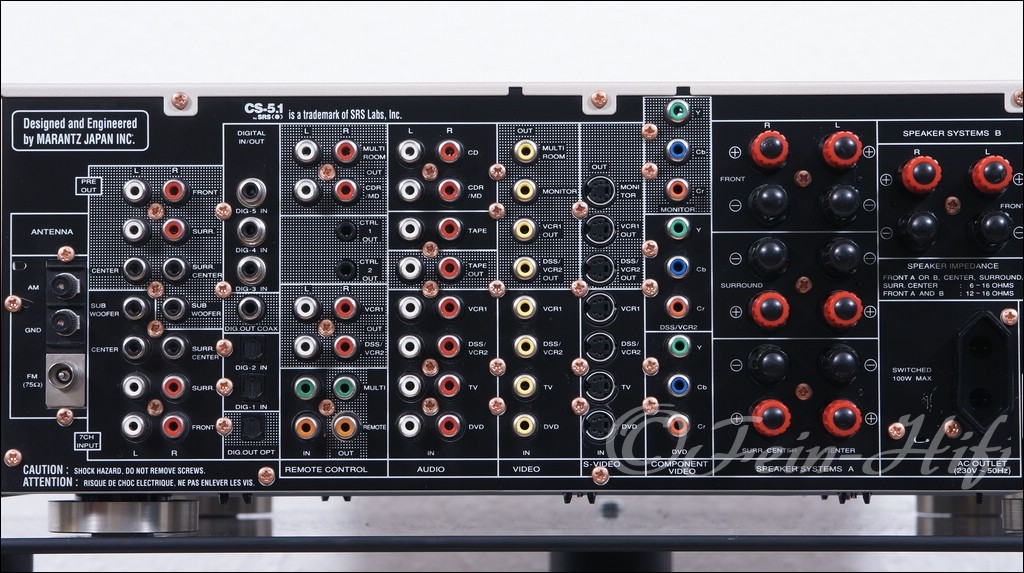

- Composite In/Out 5/3 (Incld. monitor out)
- S-Video In/Out 5/3 (Incld. monitor out)
- Component In/Out 2/1
- Gold plated In/Out
- Analog In/Out 8/4
- Digital Optical In/Out 2/1
- Digital Coaxial In/Out 3/1
- Gold Plated In/Out
- Pre-Amplifier Out 6.1 Channels
- Main Amplifier In none
- Multi-Channel In 6.1 Channels
- Multi-Room Audio Out
- Multi-Room Video Out CVBS
- RS232C
- DC Triggers 2, Assignable
- Speaker Terminal Heavy Duty, Screw, 6 Channels
- Multi-Room Speaker Terminal Heavy Duty, Screw, 6
- Channels
- D.Bus In/Out
- Multi-Room D.bus In/out
- External IR In/Out
- AC Outlets 1, Switched (Not for UK)
- Front Inputs 3, Audio/Composite/S-Video
- Headphone Out
- Power Output 110W / ch (8 Ohm)
- Signal to Noise Ratio 105 dB
- Freq.Response Analog In 20 Hz - 20 kHz (+/- 3 dB)
- Freq.Response Digital In
- Input Sensitivity/Impedance 340 mV / 47 kOhm
- Frequency Range 87.5 - 108 MHz (FM) 152 - 282 kHz (LW), 522 - 1611 kHz (MW)
- Signal to Noise Ratio 76 / 72 dB (Mono/Stereo)
- Distortion (Mono/Stereo) 0.2 / 0.3 %
- Channel Selectivity 60 dB (+/- 300 kHz)
- Usable Sensitivity IHF 1.8 uV / 16.4 dBf
- Channel Separation 45 dB (1 kHz)
- Signal to Noise Ratio 50 dB
- Distortion 0.5% (400 Hz 30% mod)
- Channel Selectivity 60 dB (+/- 18 kHz)
- Front Panel Metal
- Power Consumption 350W (Stereo mode rated)
- Abmessungen B x H x T: 440x164x400 mm
- Gewicht: 14.9 kg
235,00 €
